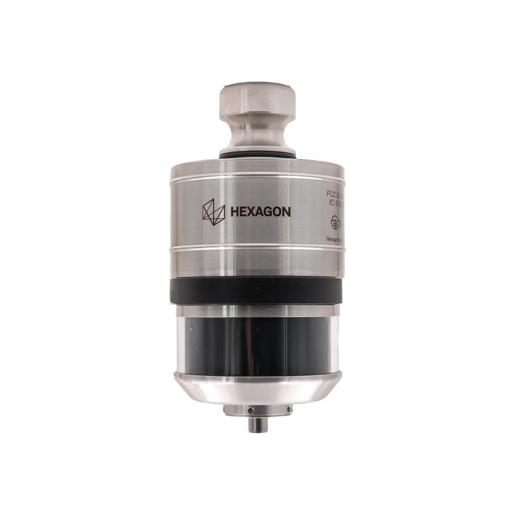

Radio-wave Probe RWP20.50-G-PP (2.4 GHz)
ID:
20.50-RWP-G-PP~
€3,330.00
Netto prijs, exclusief verzendkosten
Prijzen zijn alleen geldig voor bestellingen geplaatst via de webshop
Levertijd 10-15 dagen
Beknopt overzicht
Modular radio-wave touch probe for flexible measurement tasks.
Toegevoegd aan winkelwagen.
The m&h RWP20.50-G-PP is a modular radio-wave touch probe operating in the 2.4 GHz frequency range. It offers bidirectional communication and can be customized with various measuring units, extensions, and cross-probes. This flexibility allows for optimal adaptation to future requirements and diverse applications within the machine tool.
| Onderdeelnummer | 20.50-RWP-G-PP# |
|---|---|
| Probe Type | Radio-wave Probe |
| Transmission Frequency | 2400 - 2483,5 MHz (2,4 GHz) |
| Transmission/Reception Range | Up to 18 m |
| Tast richting | ±X; ±Y; -Z |
| Stylus montage | M4 |
| Max. Stylus Overtravel |
XY = ±12,5° Z = -6 mm |
| Recommended Probing Feedrate | Max. 2000 mm/min |
| Stroomvoorziening |
1x 9 V Battery, Block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh |
| Max. levensduur batterij | Lithium Battery: Operation 500 h, Standby 1 Year |
| Materiaal | Stainless Steel / POM |
| Temperatuurbereik |
Werking: 10 °C - 50 °C Opslag: 5°C - 70°C |
| Unidirectional Repeatability |
max. 1 µm (2 Sigma) met 50 mm stylus en 254 mm/min tastvoeding |
| Beschermingsklasse | IP68: EN60529 |
| Weight (without Tool Holder) | ca. 940 g |
