Hollow Taper Shank HSK63 Form A (L = 70mm / 2.75")
ID:
D20-HSK63A-70-B
€364.00
Prijzen zijn alleen geldig voor bestellingen geplaatst via de webshop
Op voorraad - verzending 1-2 dagen
Beknopt overzicht
Hollow taper shank HSK63 Form A for use with Hexagon touch probes with D20 connection and bidirectional activation in the machine tool. Shank length: 70 mm
Toegevoegd aan winkelwagen.
Hexagon original accessories for measuring systems in the machine tool ensure maximum precision and reliability in production. The shank establishes a secure connection between the touch probe and the spindle in the machine tool. Hexagon offers a wide range of shanks for various interfaces and different probe activation methods.
Interface
- D20
Shank Activation Method
- Bidirectional: The touch probe is directly activated via a signal sent from the receiver.
Probe Compatibility with probe activation
- Bidirectional: IRP40.01, IRP40.02, IRP40.40-LF, IRP40.42, RWP38.41, TP-R-400
All images are for illustration purposes only and may differ from the actual product.
| Onderdeelnummer | D20-HSK63A-70-B |
|---|---|
| Product Type | Hollow Taper Shank (HSK) |
| Interface | D20 |
| Activeringsmethode | Bidirectioneel (B) |
| Standaard werktuigopname | DIN 69893-1 |
| Vorm | A |

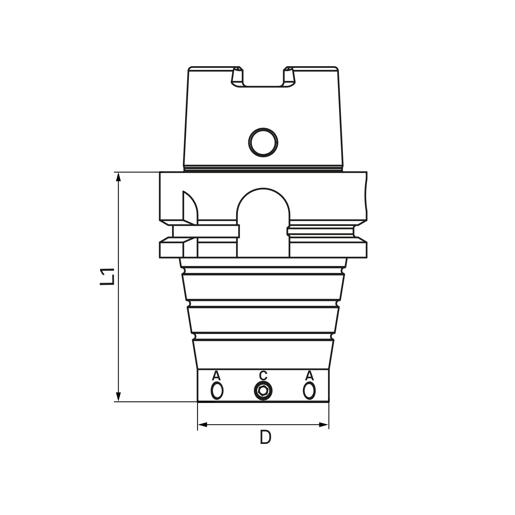

| Diameter D | 40 mm |
| Lengte L1 | 70 mm |
| Materiaal | Roestvast staal |
| Touch Probe Compatibility |
IRP40.01 IRP40.02 IRP40.40 IRP40.42 RWP38.41 TP-R-400 |
