Hollow Taper Shank HSK40 Form A
ID:
D20-HSK40A-B
€439.00
Prijzen zijn alleen geldig voor bestellingen geplaatst via de webshop
Op voorraad - verzending 1-2 dagen
Beknopt overzicht
Hollow taper shank HSK40 Form A for use with Hexagon touch probes with D20 connection and bidirectional activation in the machine tool.
Toegevoegd aan winkelwagen.
Hexagon original accessories for measuring systems in the machine tool ensure maximum precision and reliability in production. The shank establishes a secure connection between the touch probe and the spindle in the machine tool. Hexagon offers a wide range of shanks for various interfaces and different probe activation methods.
Interface
- D20
Shank Activation Method
- Bidirectional: The touch probe is directly activated via a signal sent from the receiver.
Probe Compatibility with probe activation
- Bidirectional: IRP40.01, IRP40.02, IRP40.40-LF, IRP40.42, RWP38.41, TP-R-400
All images are for illustration purposes only and may differ from the actual product.
| Onderdeelnummer | D20-HSK40A-B |
|---|---|
| Product Type | Hollow Taper Shank (HSK) |
| Interface | D20 |
| Activeringsmethode | Bidirectioneel (B) |
| Standaard werktuigopname | DIN 69893-1 |
| Vorm | A |

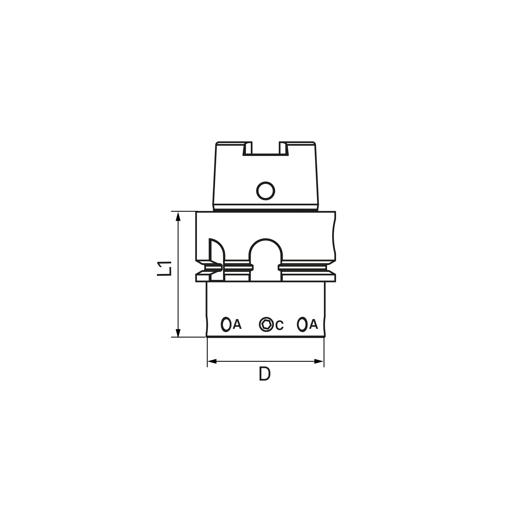

| Diameter D | 34 mm |
| Lengte L1 | 36 mm |
| Materiaal | Roestvast staal |
| Touch Probe Compatibility |
IRP40.01 IRP40.02 IRP40.40 IRP40.42 RWP38.41 TP-R-400 |
