ID: D28-HSK50A-M

€750.00

Prijzen zijn alleen geldig voor bestellingen geplaatst via de webshop
Op voorraad - verzending 1-2 dagen

Beknopt overzicht

Hollow taper shank HSK50 Form A for use with Hexagon touch probes with D28 connection and mechanical activation in the machine tool.

Hexagon original accessories for measuring systems in the machine tool ensure maximum precision and reliability in production. The shank establishes a secure connection between the touch probe and the spindle in the machine tool. Hexagon offers a wide range of shanks for various interfaces and different probe activation methods.
Interface

  • D28

Shank Activation Method

  • Mechanical: The probe is activated by a mechanical switch inside the HSK. The probe is switched on in the spindle and switched off in the magazine.

Probe Compatibility with probe activation

  • Mechanical: IRP25.10, IRP25.41, IRP25.44, IRP25.50, RWP20.10, RWP20.41, RWP20.44, RWP20.50-G, RWP20.50-M
  • Bidirectional: IRP25.50, RWP20.50-G, RWP20.50-M, LS-R-4.8

Extended probe configurations are possible by using suitable adapters

Probe Compatibility with Modular Adapter D20-MO-B and probe activation

  • Bidirectional: IRP40.01, IRP40.02, IRP40.40-LF, IRP40.42, TP-R-400

Probe Compatibility with Modular Adapter D20-MO-B-D50 and probe activation

  • Bidirectional: RWP38.41

Probe Compatibility with Modular Adapter D20-MO-A/W/M/P and probe activation

  • Mechanical: IRP32.00, RWP38.10

Probe Compatibility with Modular Adapter 5942 and probe activation

  • Bidirectional: IRP60.00

All images are for illustration purposes only and may differ from the actual product.

Onderdeelnummer D28-HSK50A-M
Product Type Hollow Taper Shank (HSK)
Interface D28
Activeringsmethode Mechanisch (M)
Standaard werktuigopname DIN 69893-1
Vorm

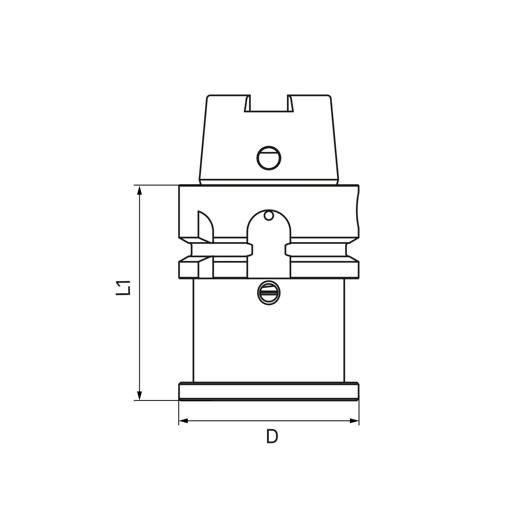

Diameter D 50 mm
Lengte L1 60 mm
Materiaal Roestvast staal
Touch Probe Compatibility IRP25.10
IRP25.41
IRP25.44
IRP25.50
RWP20.10
RWP20.41
RWP20.44
RWP20.50-G
RWP20.50-M
LS-R-4.8
