Taper Shank JIS-BT40
ID:
6115
€280.00
Los precios sólo son válidos para pedidos realizados a través de la tienda web.
En Stock - Envío 1-2 Días
Descripción rápida

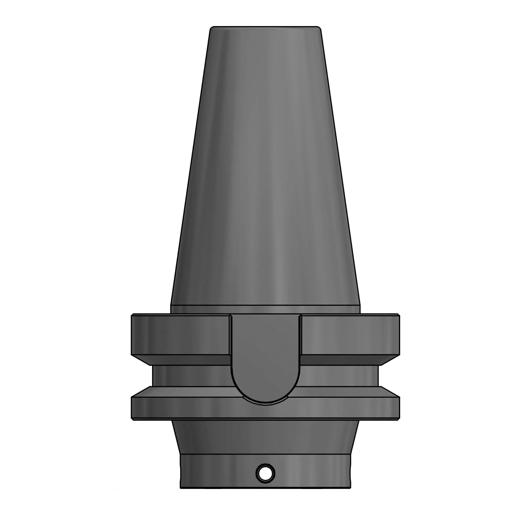

Taper shank JIS BT40 for use with Hexagon touch probes with D11 connection and bidirectional probe activation in the machine tool.
Agregado a su carrito de compra.
Hexagon original accessories for measuring systems in the machine tool ensure maximum precision and reliability in production. The shank establishes a secure connection between the probe and the spindle in the machine tool. Hexagon offers a wide range of shanks for various interfaces and different probe activation methods.
Interface
- D11
Shank Activation Method
- Bidirectional: The probe is driectly activated via a signal sent from the receiver.
Probe Compatibility with probe activation
- IRP60.00
All images are for illustration purposes only and may differ from the actual product.
| Número de artículo | 6115 |
|---|---|
| Tipo de producto | Taper Shank (SK) |
| Interface | D11 |
| Método de activación | Bidireccional (B) |
| Portaherramienta estándar | ISO 7388-2 (JIS B 6339) |

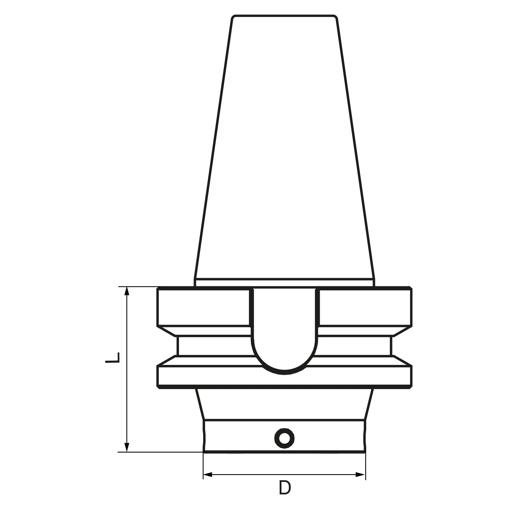

| Diámetro D | 40 mm |
| Longitud L1 | 43 mm |
| Material | Acero inoxidable |
| Compatibilidad sonda | IRP60.00 |
