Hollow Taper Shank HSK63 Form A
ID:
D20-HSK63A-B
€366.00
Los precios sólo son válidos para pedidos realizados a través de la tienda web.
En Stock - Envío 1-2 Días
Descripción rápida
Hollow taper shank HSK63 Form A for use with Hexagon touch probes with D20 connection and bidirectional activation in the machine tool.
Agregado a su carrito de compra.
Hexagon original accessories for measuring systems in the machine tool ensure maximum precision and reliability in production. The shank establishes a secure connection between the touch probe and the spindle in the machine tool. Hexagon offers a wide range of shanks for various interfaces and different probe activation methods.
Interface
- D20
Shank Activation Method
- Bidirectional: The touch probe is directly activated via a signal sent from the receiver.
Probe Compatibility with probe activation
- Bidirectional: IRP40.01, IRP40.02, IRP40.40-LF, IRP40.42, RWP38.41, TP-R-400
All images are for illustration purposes only and may differ from the actual product.

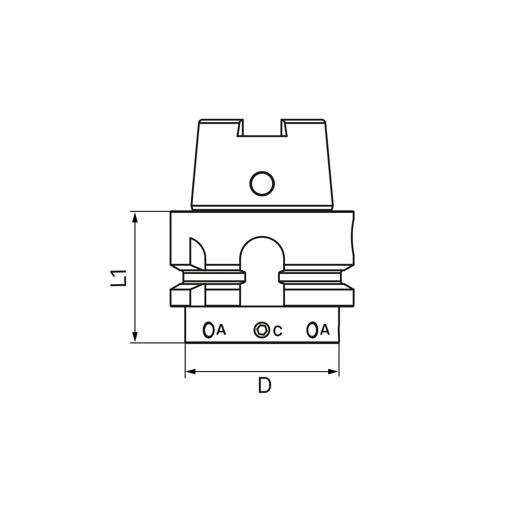

| Número de artículo | D20-HSK63A-B |
|---|---|
| Tipo de producto | Hollow Taper Shank (HSK) |
| Interface | D20 |
| Método de activación | Bidireccional (B) |
| Portaherramienta estándar | DIN 69893-1 |
| Forma | A |
| Diámetro D | 51 mm |
| Longitud L1 | 36 mm |
| Material | Acero inoxidable |
| Compatibilidad sonda |
IRP40.01 IRP40.02 IRP40.40 IRP40.42 RWP38.41 TP-R-400 |
