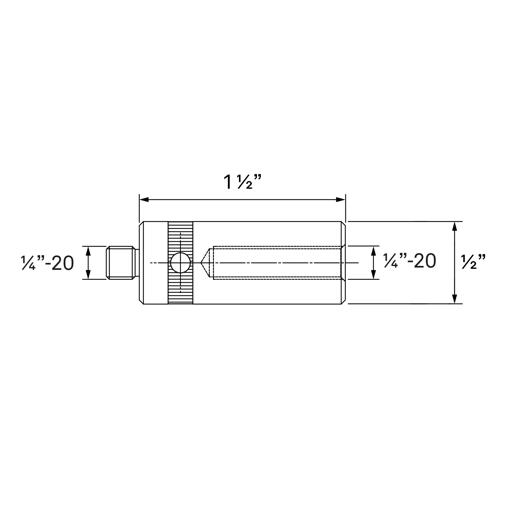

Quick overviewStandoff made of aluminium, with 1/4"-20 thread. It is used for lifting parts or for attaching other Swift-Fix components to achieve the required height. This part is used conjunction with FI-SLIDER it will then bring the height of the pillar back to a Nominal 1”
Swift-Fix enables operators to correctly fixture parts of different shapes, sizes and complexity. It saves time while increasing repeatability and reducing the potential for measurement error.
The standoff elevates a part to make it accessible. It also can be used to elevate other fixture components like pins or clamps. Standoffs are available in different diameters and lengths and can be combined to achieve the desired height.
For more information, please visit the Swift-Fix website or download the CAD-file of the part: Step File
|Thread||1/4" - 20|
