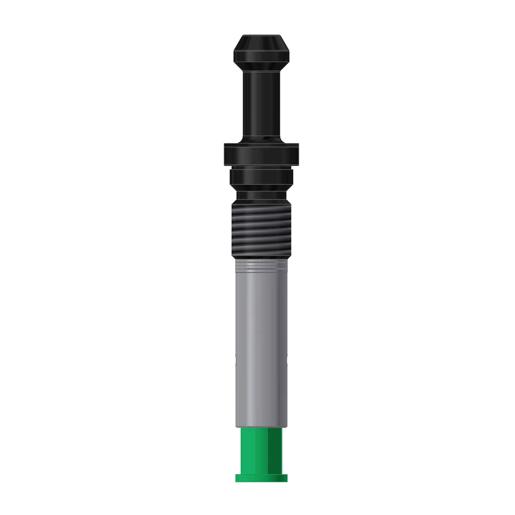

Pullstud Type 06
ID:
AZ-06
CHF225.00
Prices are only valid for orders placed through the web shop
In Stock - Despatched 1-2 Days
Quick Overview
Pull stud with integrated mechanism for activating Hexagon touch probes equipped with BT40 taper shank.
Added to your shopping cart.
Hexagon original accessories for measuring systems on machine tools ensure maximum precision and reliability in production. The tool holder is pulled from spindle’s clamping gripper into the spindle using the pull stud. This pull stud has an integrated activation mechanism and is used on Hexagon touch probes which are using the reliable pull stud activation method.
Shank Compatibility
- Taper Shank BT40
The images are for illustration purposes and the actual product may differ.

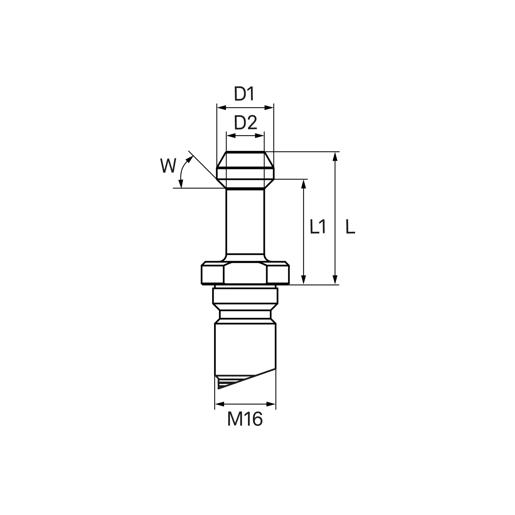

| Part Number | AZ-06 |
|---|---|
| Product Type | Pullstud with integrated activation mechanic |
| Thread | M16 |
| Head Diameter D1 | 15 mm |
| Head Diameter D2 | 10 mm |
| Length L1 | 35 mm |
| Length L2 | 28 mm |
| Angle W | 45 ° |
| Standard | JIS B 6339 Typ 1 |
| Tightening torque max. | 50 Nm |
| Material | Stainless Steel |
| Shank Compatibility | D28-BT40-A/B |
